Description

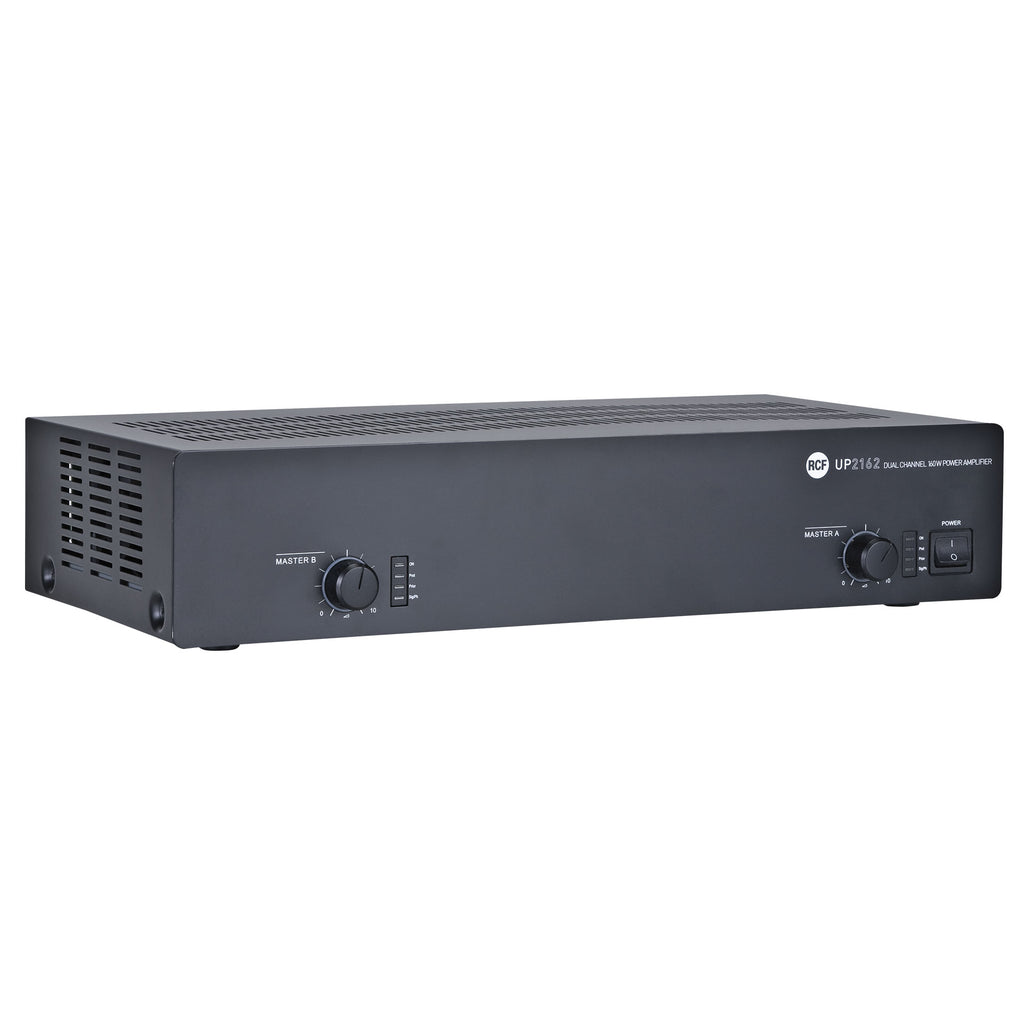

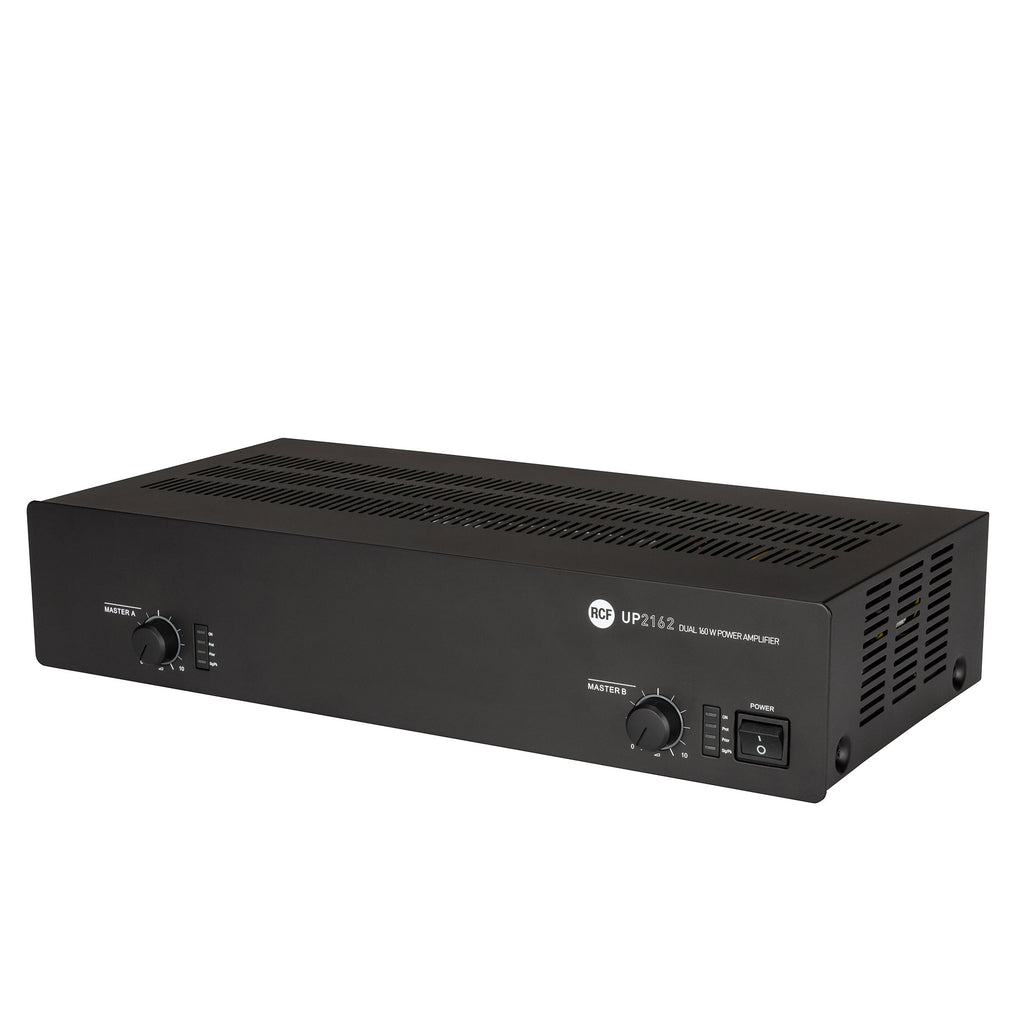

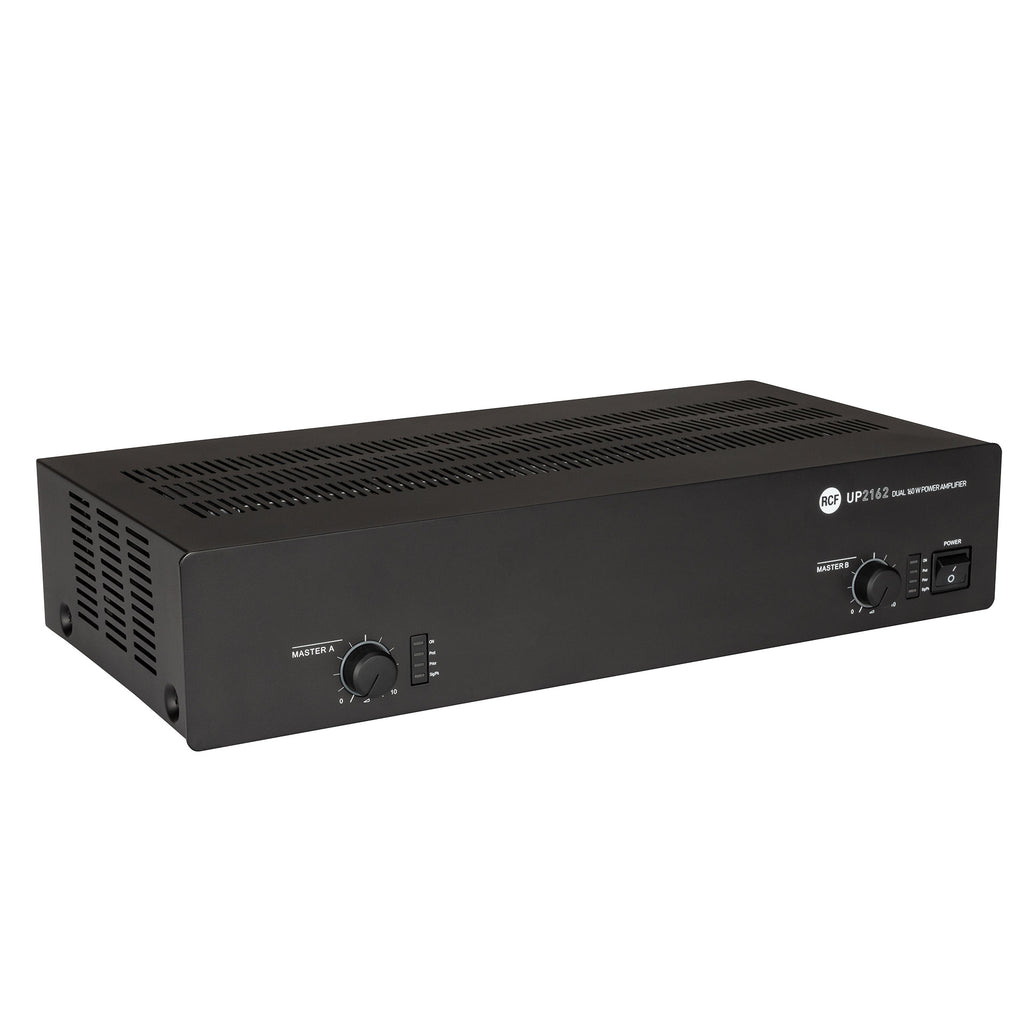

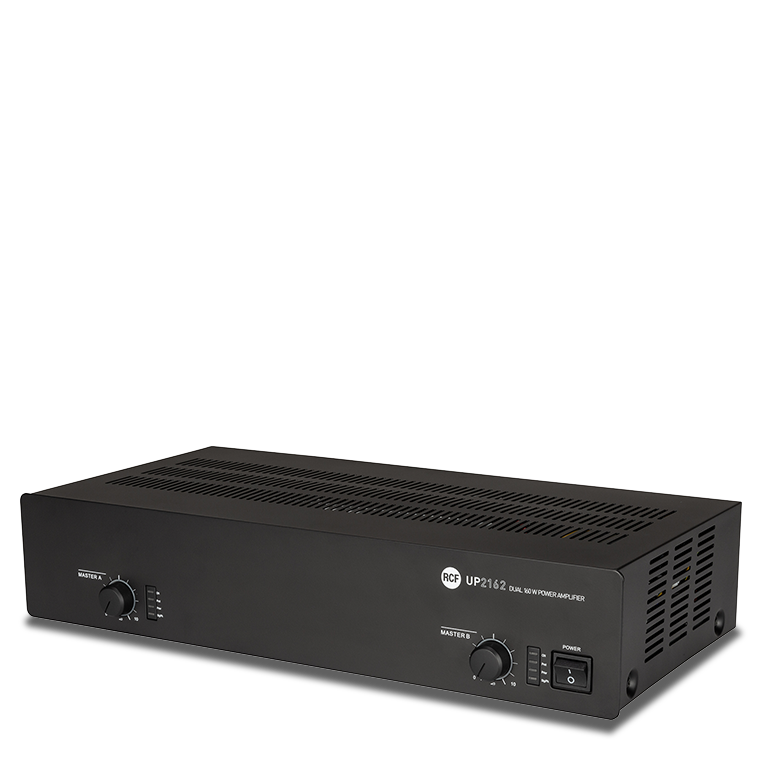

COMMERCIAL | UP 2162 | POWER AMPLIFIER | Power Amplifier designed for the transmission of announcements and / or musical programmes | Main input on removable connector | AUX Input for music sources removable connector
Technical Specifications
| Controls for treble, bass and Gain on the AUX Input | |
| Technical Specifications | Amplifier specifications |
| Output Power | 2 x 160 W @ 4 ohm |
| Frequency Response (-3dB) | 50 Hz - 16 Hz |
| Distortion (THD+N) @ 1 kHz nominal power | <0.3 % |
| Input section | Total number of inputs |
| 4 | Balanced |
| Mono | 2 |
| Stereo | Line inputs |
| Line connectors | Euroblock |
| General Purpose Inputs (GPI) | Output section |
| Power output connectors | Processing |
| Tone controls | Yes |
| Configuration and control | Configuration |
| Front panel | Priority |
| Protections | Cooling |
| Convection | Short circuit |
| Thermal | DC |
| Fuses | Power requirement |
| Operating voltage | 220-240/115 V~ 50/60Hz |
| Voltage selection | Internal |
| Power consumption (MAX) | 700 W |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Metal |
| Color | Black |
| Rack mounting | 19", 2U |
| Size / Weight | |
| Height | 88 mm / 3.46 inches |
| Width | 442 mm / 17.4 inches |
| Depth | 230 mm / 9.06 inches |
| Weight | 7.22 kg / 15.92 lbs |
| Shipping information | |
| Package Height | 200 mm / 7.87 inches |
| Package Width | 330 mm / 12.99 inches |
| Package Depth | 500 mm / 19.69 inches |
| Package Weight | 8.7 kg / 19.18 lbs |
