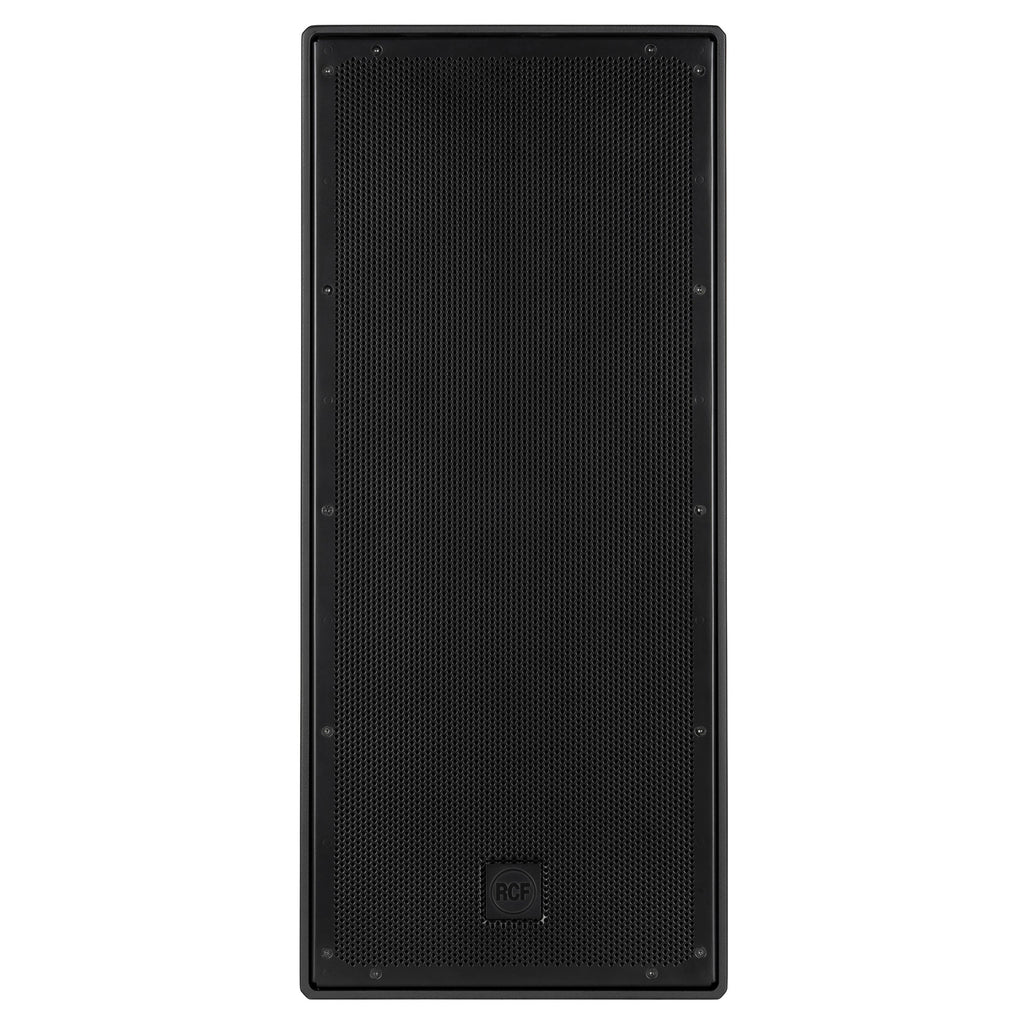

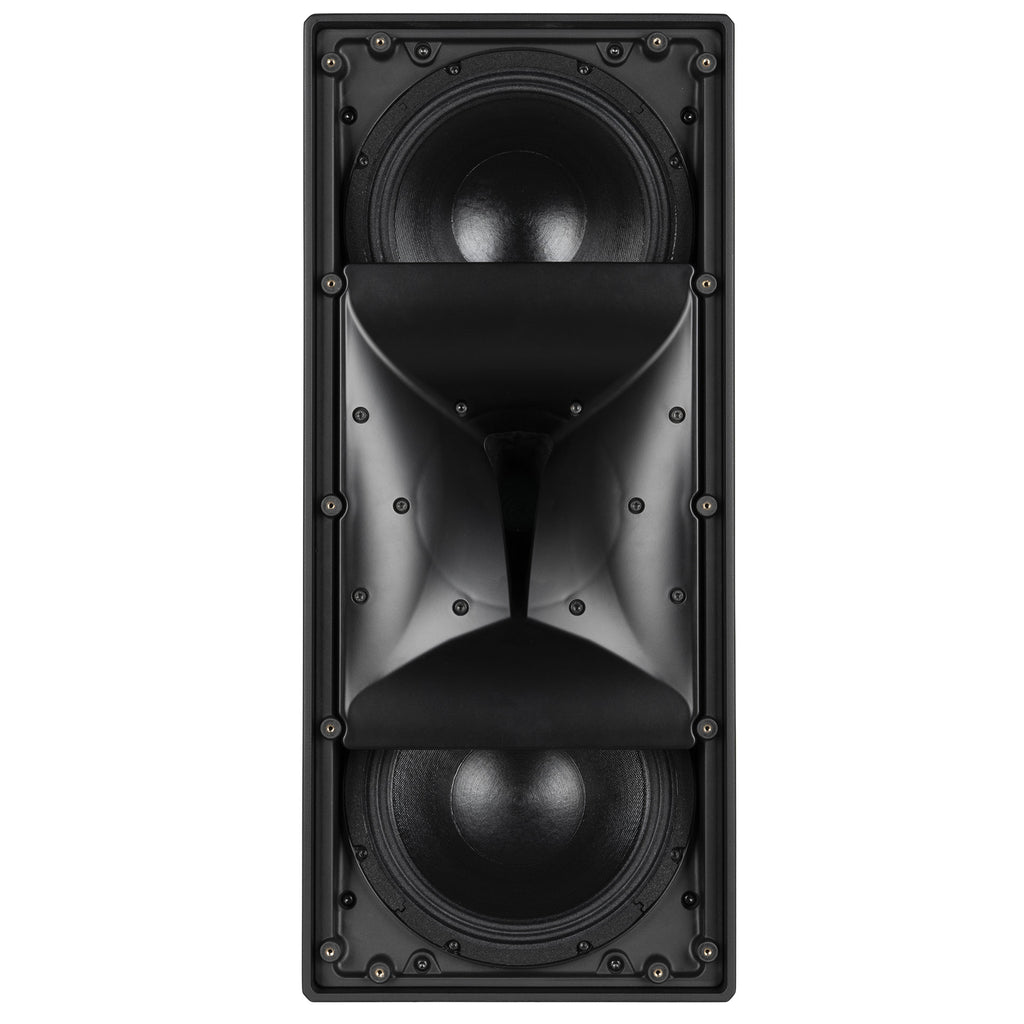

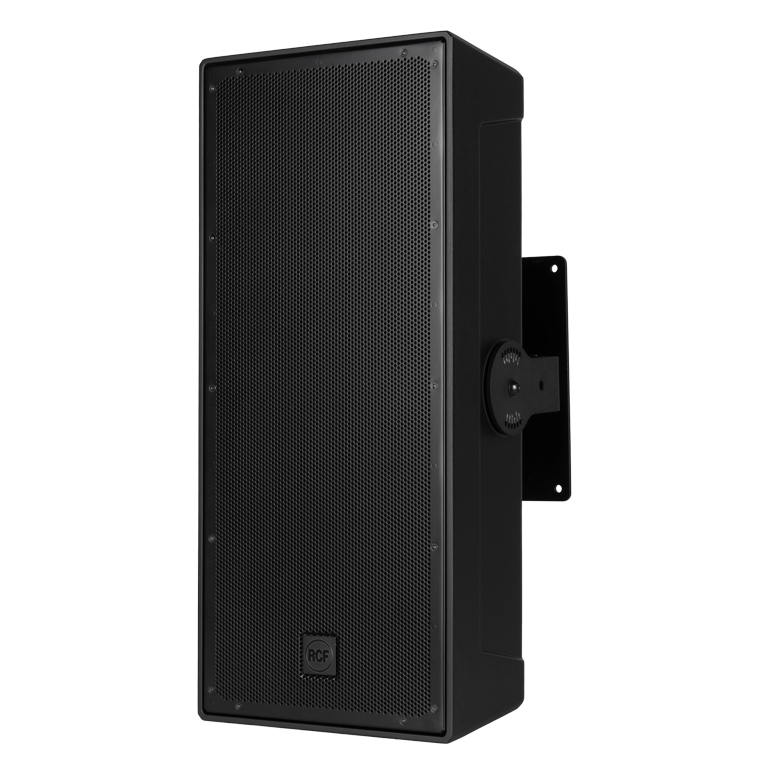

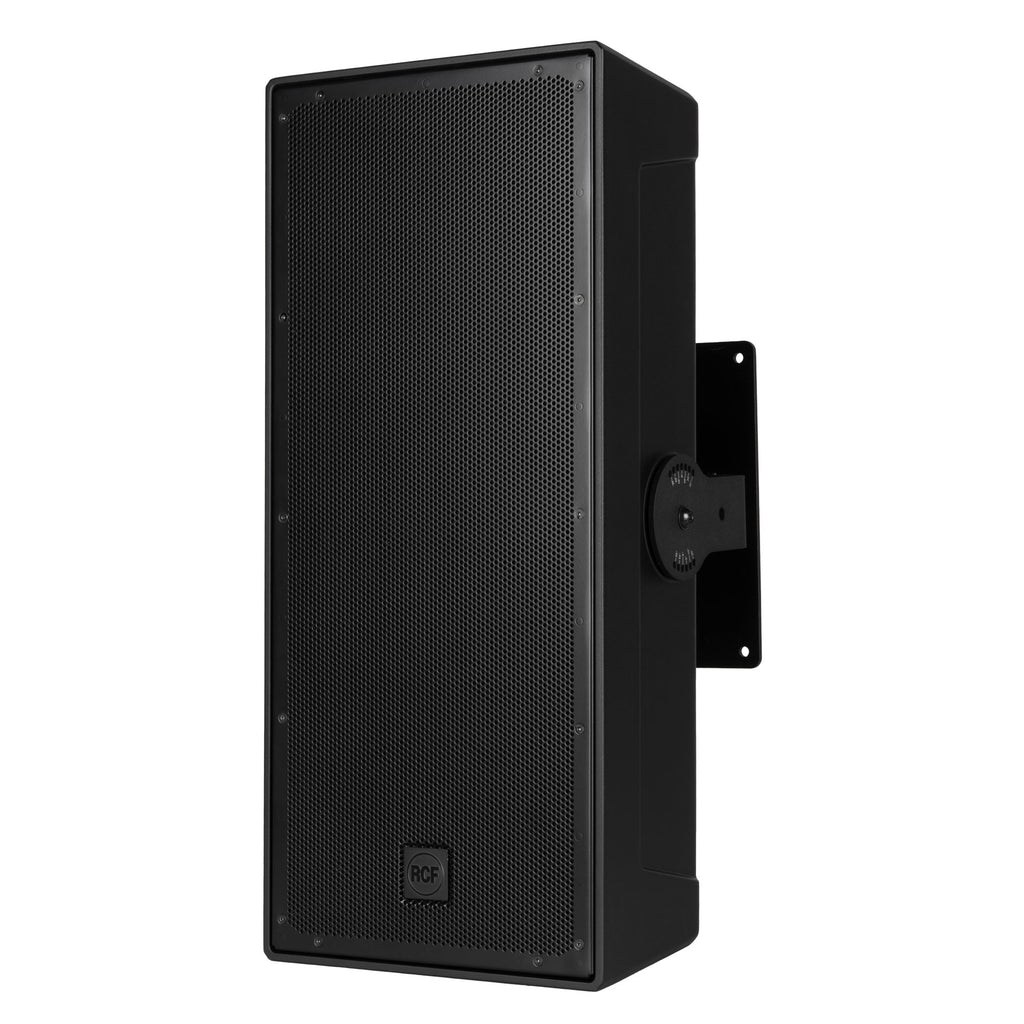

X 40 is a two-way professional speaker designed for a wide range of fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the state of the art RCF transducers, two 10'' high power woofers with 3.0'' voice coils and one 1.4'', titanium dome, compression driver with 4.0'' voice coil, it offers exceptional max SPL level with a balanced and clear sound. The asymmetrical horn with 110° by 60° directivity allows an efficient coverage at different distances, as for example in the case of a racing circuit grandstand. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for wall mount vertical installation is included. EN 54-24:2008 technical data available in the user manual.

Features

• 1200 W RMS power handling
• 142 dB max SPL
• 50 ÷ 20000 Hz frequency range
• 110° x 60° coverage angle with asymmetric horn
• 2 x 10" neo woofer, 3.0'' v.c.
• 1 x 1.4" neo compression driver, 4.0'' v.c.
• Polyurethane cabinet / aluminum grille
• IP55 protection grade

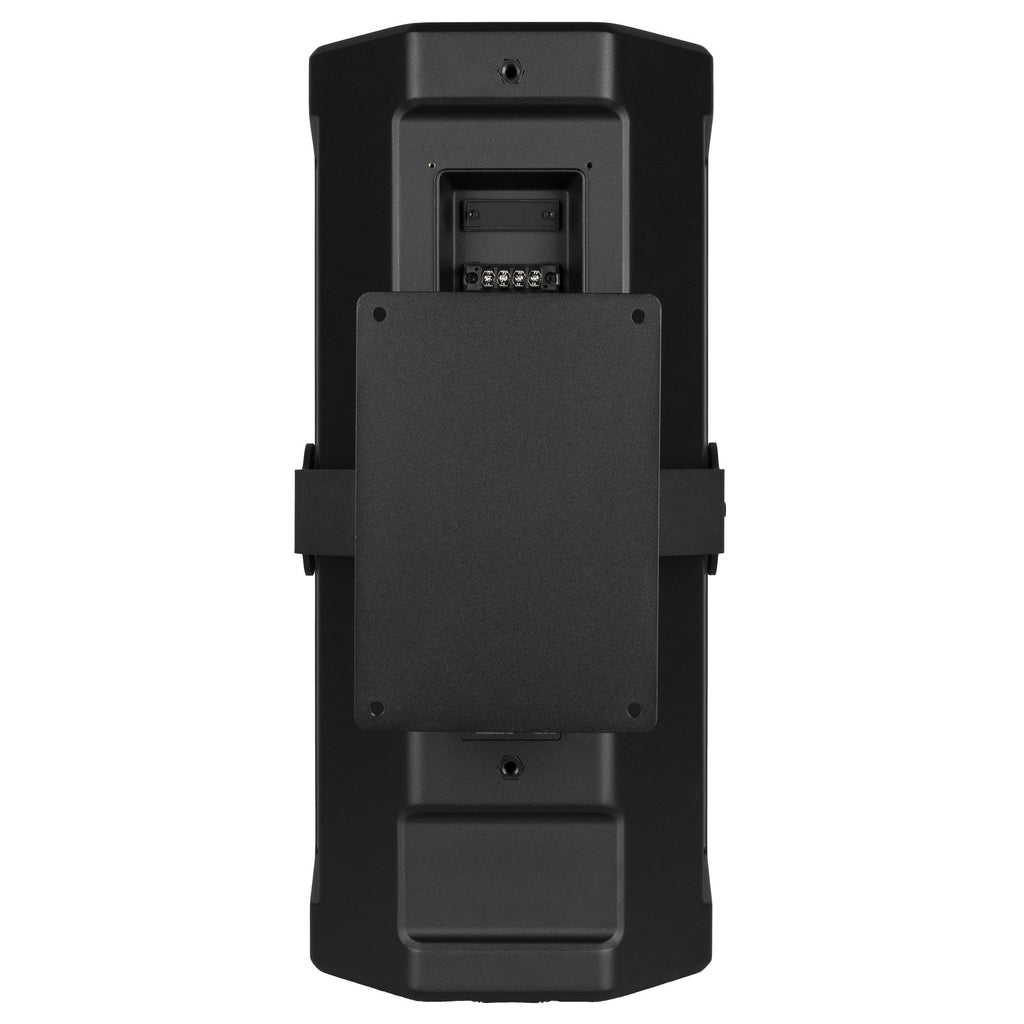

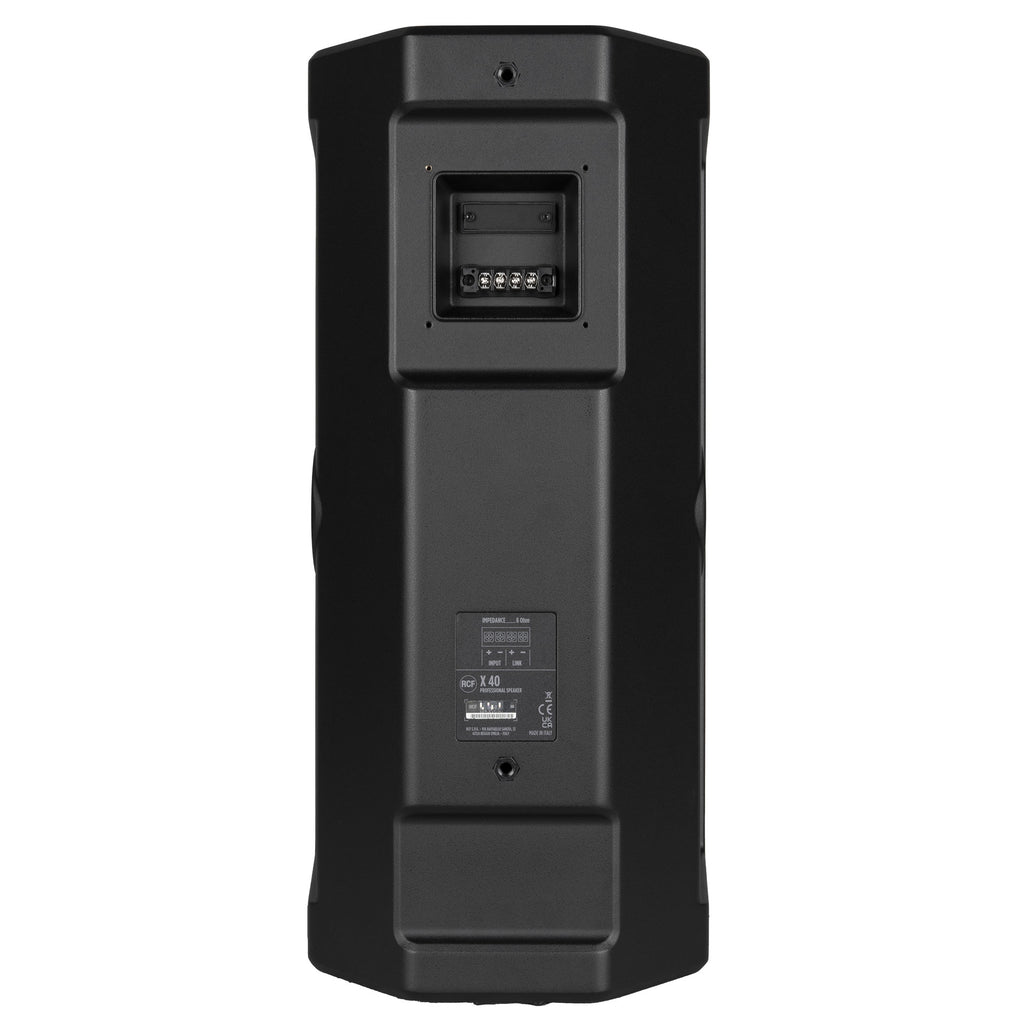

• 4 pole barrier strip terminals

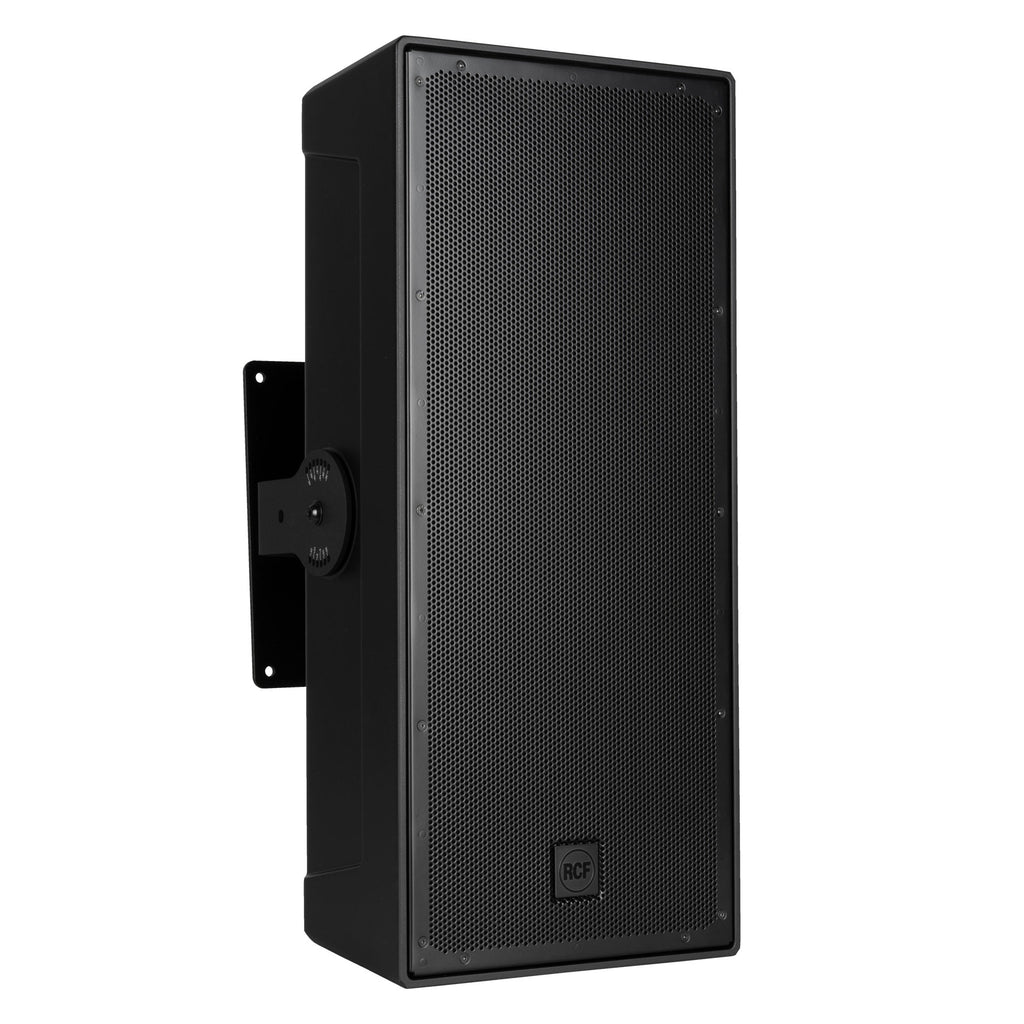

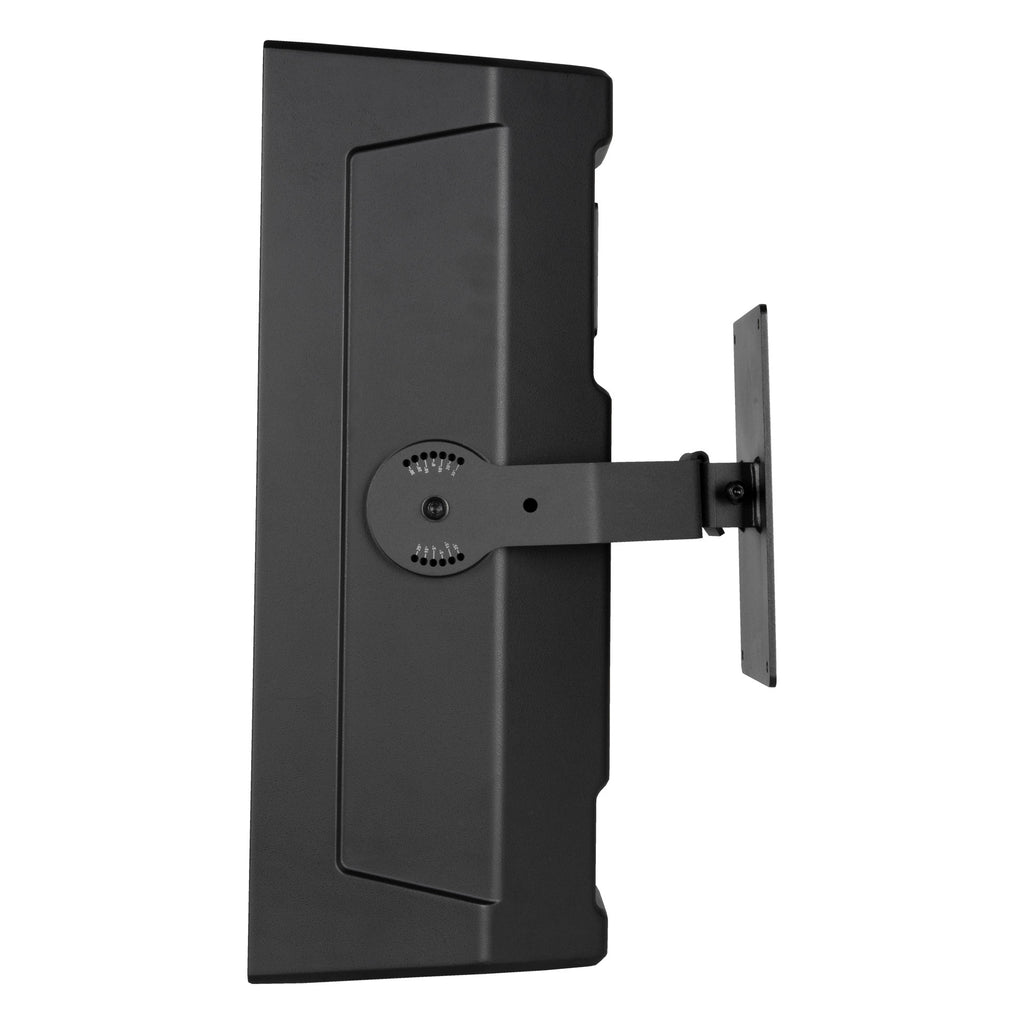

• Wall mount vertical bracket included

All-weather Performance

Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

Superior Transducers

Low Frequencies

RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.

High Frequencies

The compression driver voice coil features high-performance materials-including neodymium magnets and titanium domes-for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.

TRW Asymmetric Constant Coverage Waveguide

LICC - Low Impedance Compensated Crossover

Recommended Power Amp

XPS SERIES

40-bit Floating-point Processing at 96 kHz

Ready-to-Use Configurations and presets for RCF speakers

2U Rack Space

Flexible 32-bit Routing with analog, digital and Dante I/O

Advanced Fault Protections for each amplifier channel and power supply

Versatility for Any Application

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Polyurethane: the ultimate in durability

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client's real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

Specifications
