Description

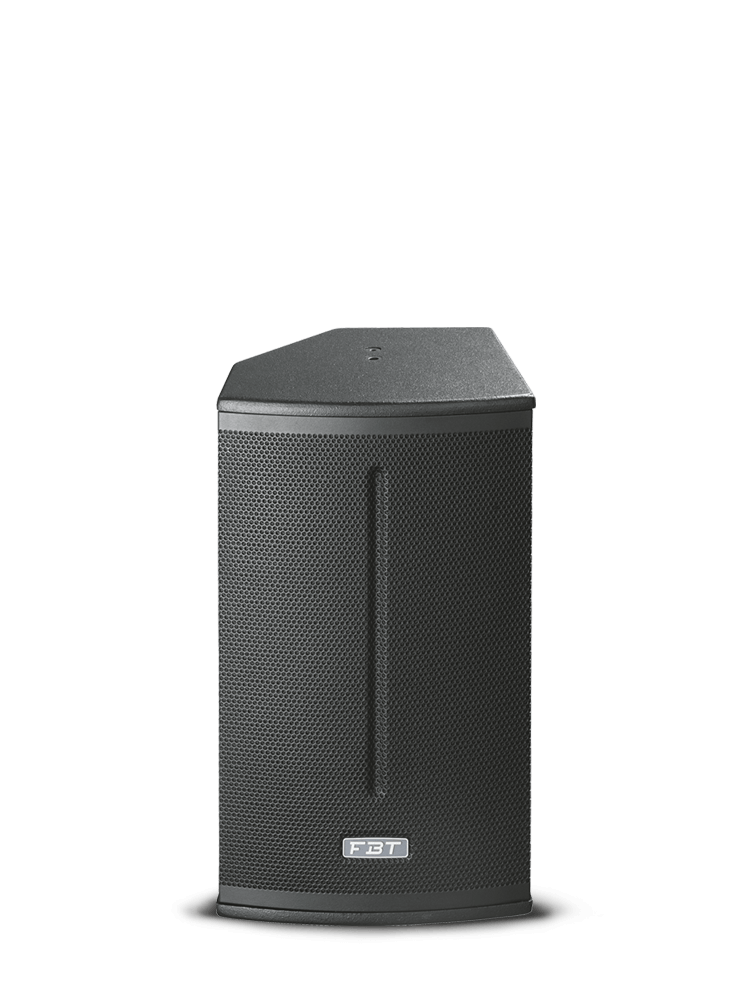

X PRO 110A is a compact active 2-way loudspeaker designed for portable sound, installations, and stage monitoring. It features a 10″ woofer with a 2.5″ voice coil and a 1″ compression driver with a 1.4″ voice coil, mounted on a rotatable 80° x 50° constant directivity horn. The Class D bi-amplification system delivers 1200W LF + 300W HF and achieves a max SPL of 127 dB with a frequency response of 58 Hz – 20 kHz.
The control panel includes a three-channel input section: one XLR mic/line input, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED. Other features include DSP preset selector, high-pass filter, two mic/line selectors, and an XLR output with CH1 or mix link selector. Constructed from plywood with a steel grille, X PRO 110A integrates M10 rigging points and a 35 mm pole socket for mounting. Optional accessories include the XP-UH 10horizontal wall bracket.
Technical Specifications
| Code | 43720 |
| Configuration | 2 way |
| Built-in amplifier LF/HF | 1200 / 300W |
| Frequency response | 58Hz - 20KHz -6dB |
| Low frequency woofer | 10''- 2.5'' coil |
| High Frequency driver | 1'' - 1.4'' coil |
| Maximum SPL cont/peak | 123 / 127dB |
| Dispersion | 80°x50° rotatable horn |
| Input impedance | 22kOhm |
| Input connector | XLR IN / OUT - Jack ST |
| Power cord | 5 m / 16.4 ft |
| Net Dimension (WxHxD) | 314 x 550 x 315 mm / 12.36 x 21.65 x 12.40 inch |
| Net Weight | 14.6 Kg / 32.1 Lb |
| Transport Dimension (WxHxD) | 410 x 610 x 410 mm / 16.1 x 24 x 16.1 inch |
| Transport Weight | 17.7 Kg / 39 Lb |
