Description

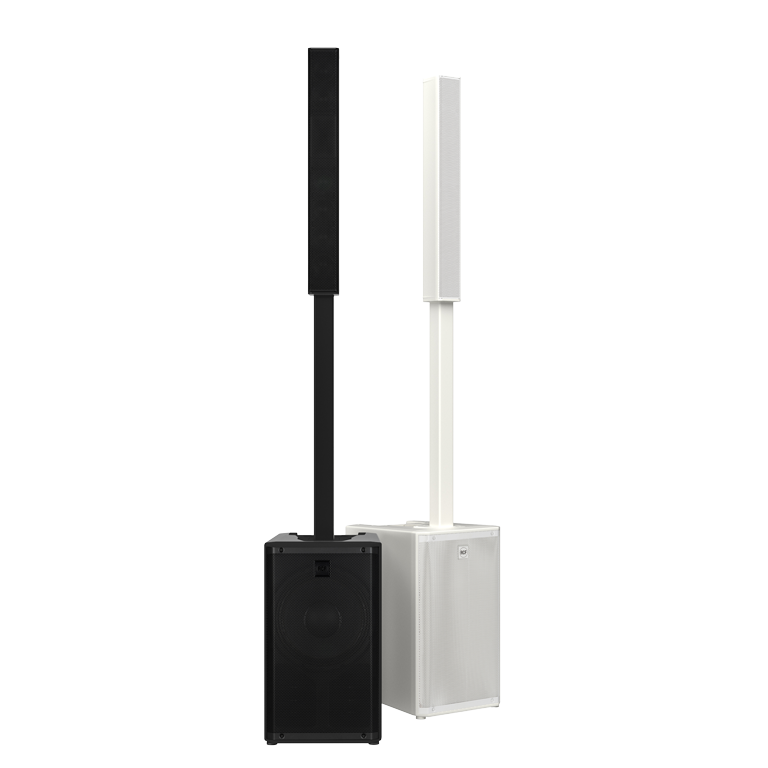

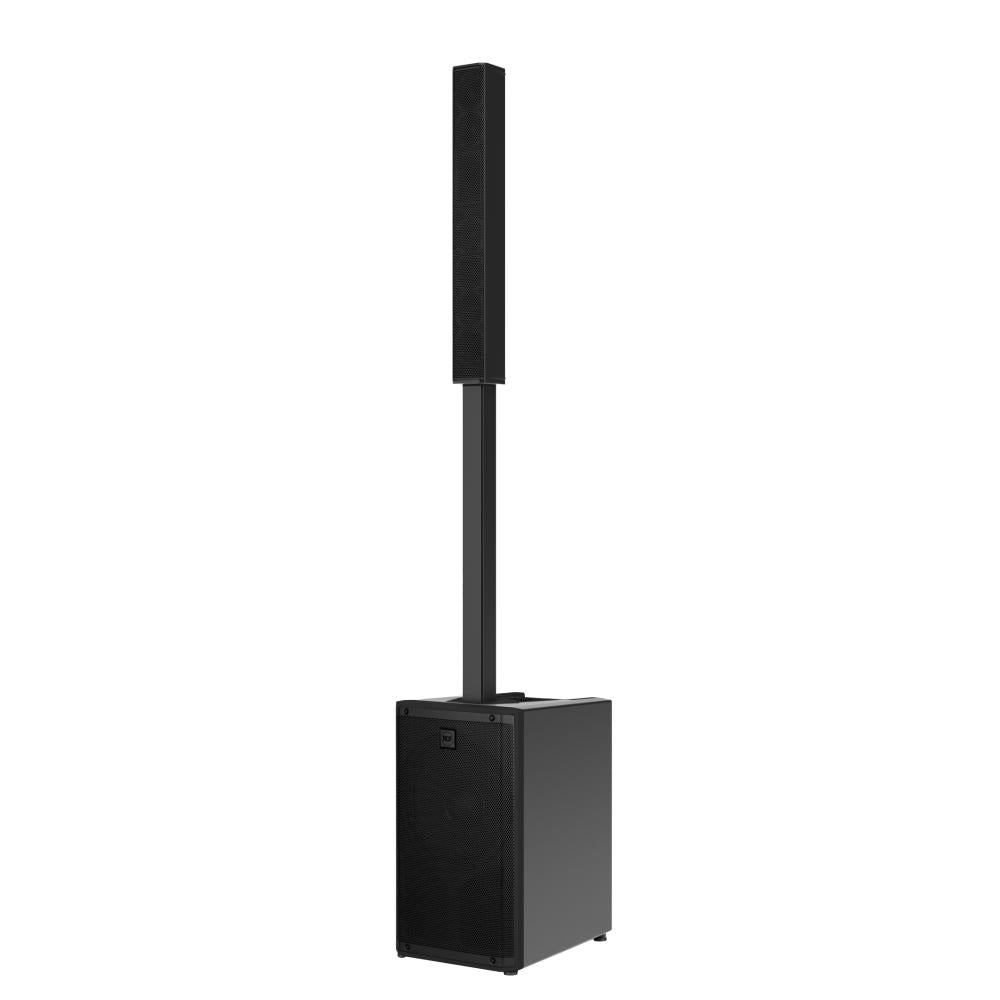

NEW | EVOX J9 | ACTIVE THREE-WAY PORTABLE COLUMN SPEAKER | Technical Specifications | 130 dB Max SPL | 2100 W Class-D Amplifier - Built-In DSP
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 40° |
| Transducers | |
| Compression Driver | 1 x 0.75'' neo, 1.75'' v.c |
| Fullrange | 6 x 3.0'' neo, 1.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 200 Hz/1800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | |
| Volume, Presets: LINEAR/LIVE, CLUB, VOICE | |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | |
| VDE | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole mount/Cap | Quick-fit socket |
| Grille | Steel |
| Color | Black, White - RAL 9003 |
| Size / Weight | |
| Height | 2080.1 mm / 81.89 inches |
| Width | 350 mm / 13.78 inches |
| Depth | 462.6 mm / 18.21 inches |
| Weight | 28.3 kg / 62.39 lbs |
| Shipping information | |
| Package Height | 680 mm / 26.77 inches |
| Package Width | 490 mm / 19.29 inches |
| Package Depth | 460 mm / 18.11 inches |
| Package Weight | 32 kg / 70.55 lbs |
