Active 10" 2-way Coaxial Powered Monitor

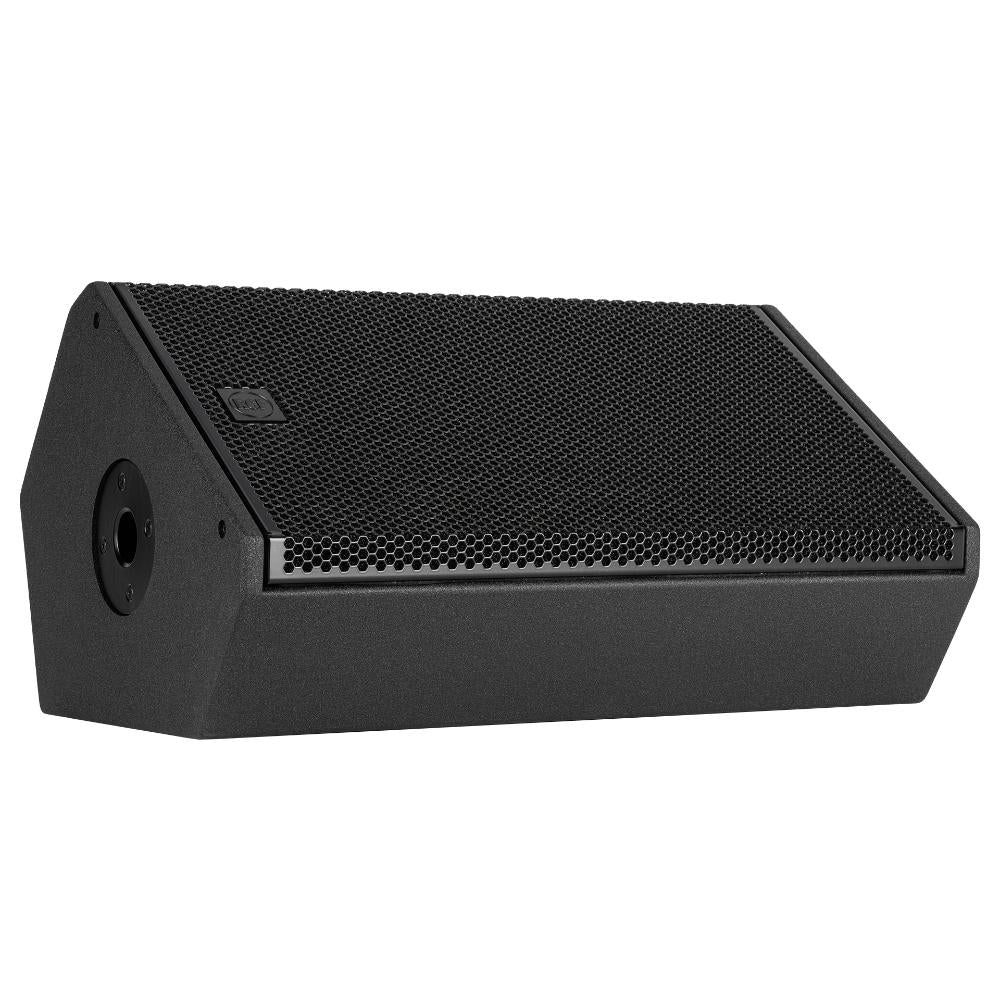

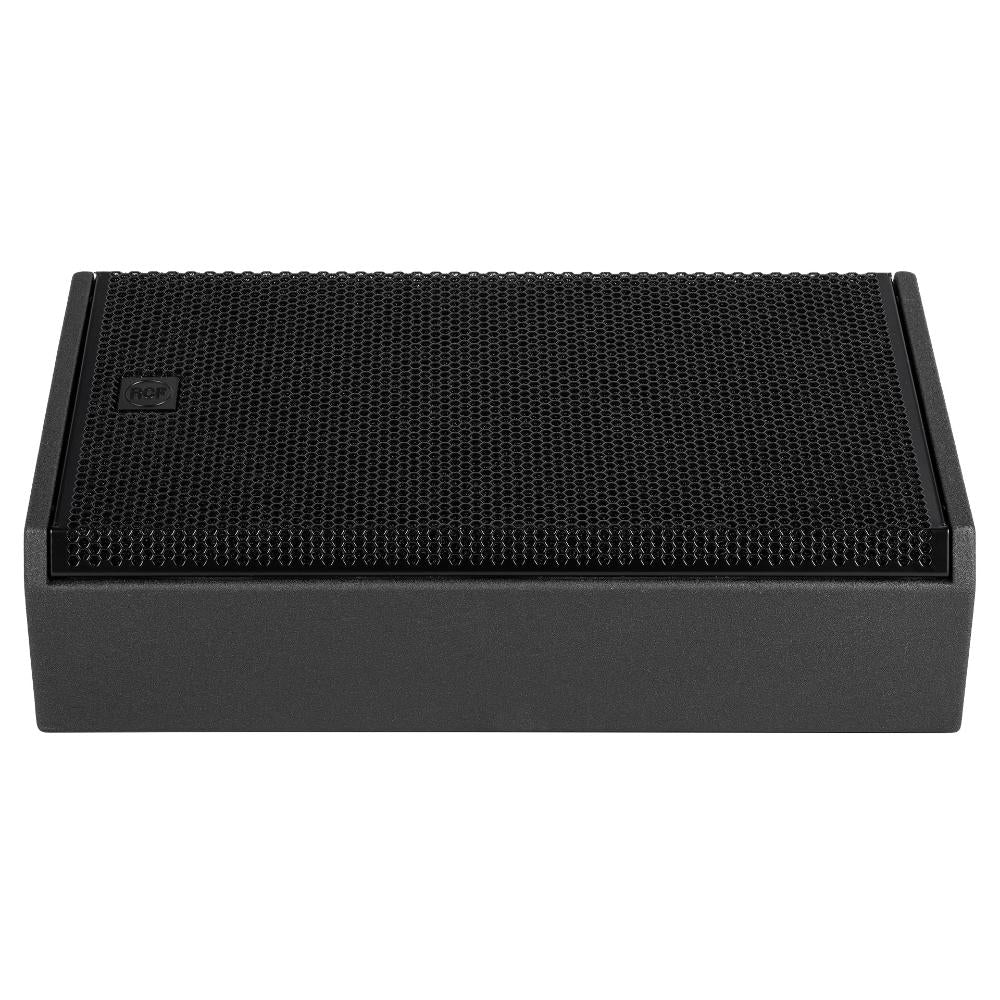

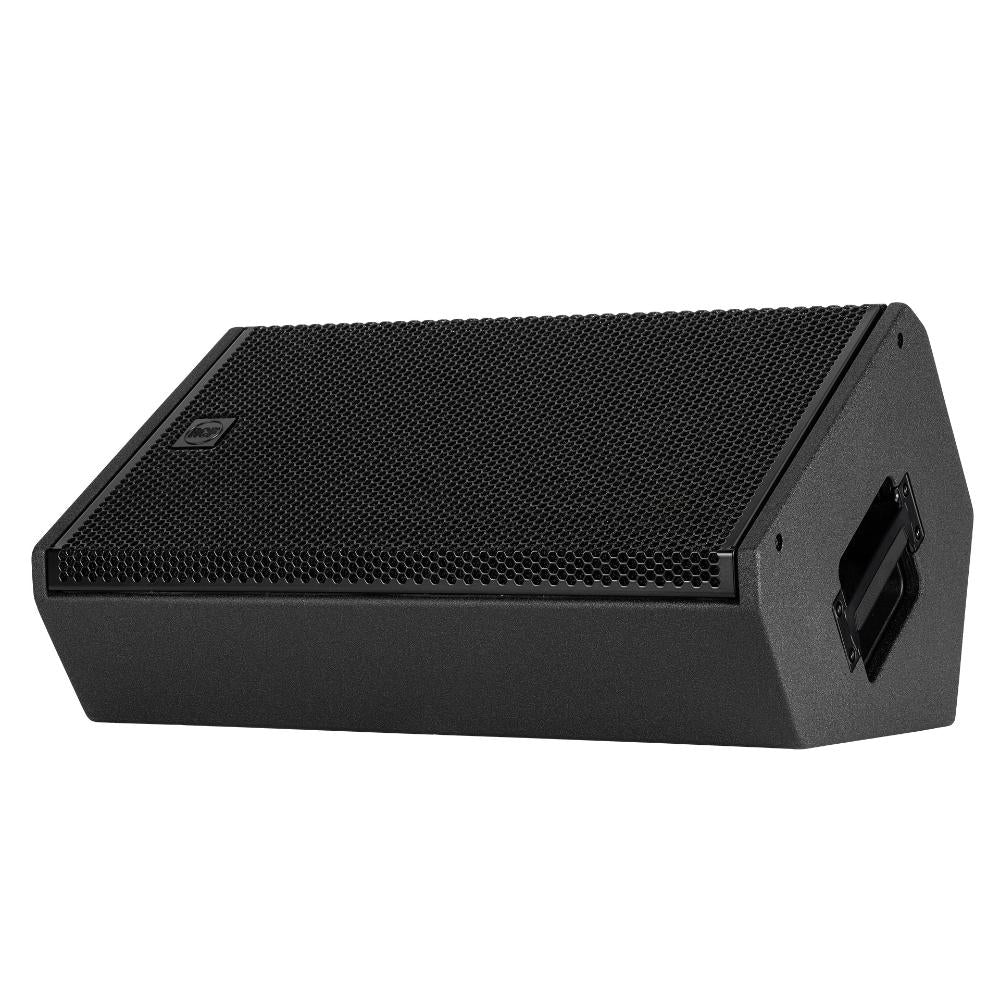

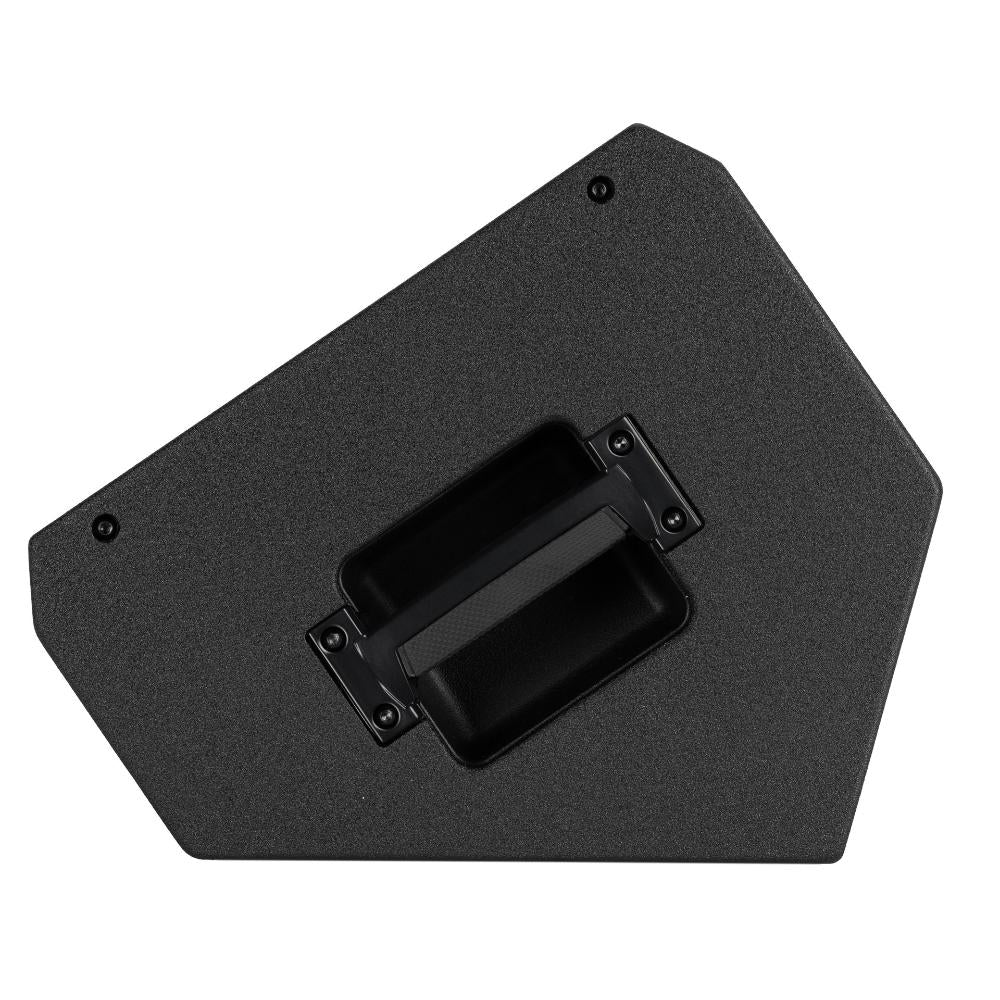

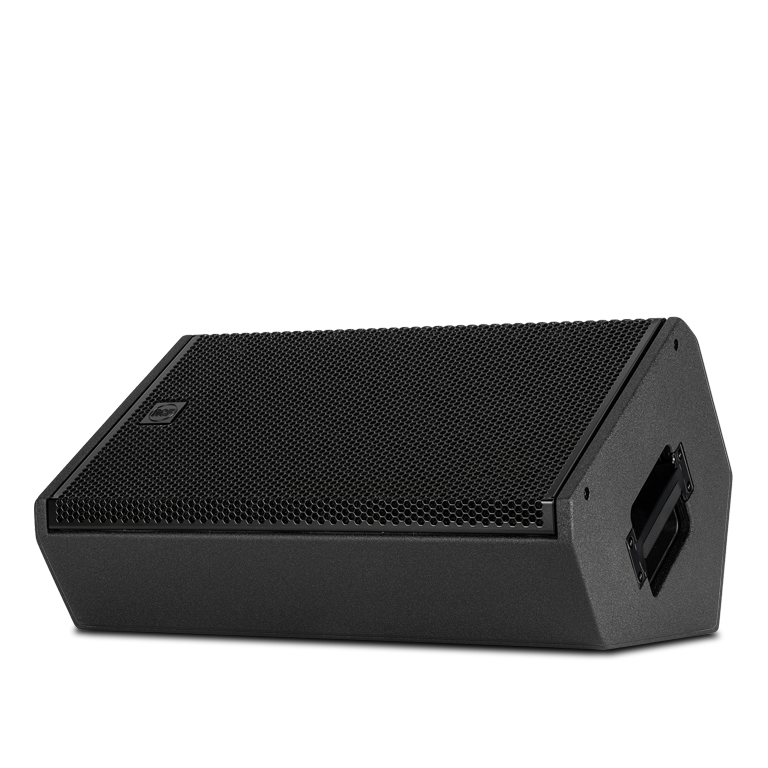

The NX 10-SMA is equipped with new high power 400 W digital amplifier and a newly designed 10 " coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

Features:

• 800 Watt Peak, 400 Watt RMS digital bi-amplification
• 127 dB max spl
• 60° x 60° constant directivity horn
• 10" High power neodymium woofer, 2.5" voice coil
• 1.7 kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection
• Combo xlr/jack input, xlr signal output

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 127 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
• Woofer: 10'' neo, 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

PROCESSOR SECTION

• Protections: RMS, HF
• Limiter: Soft Limiter
• Controls: Freefield, Floor

POWER SECTION

• Total Power: 800 W Peak, 400 W RMS
• High frequencies: 200 W Peak, 100 W RMS
• Low frequencies: 600 W Peak, 300 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Handles: 1 on side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 324 mm / 12.76 inches
• Width: 450 mm / 17.72 inches
• Depth: 417 mm / 16.42 inches
• Weight: 14.3 kg / 31.53 lbs
