RCF NX912-SMA

Save $100
RCFSKU: 13000784

Price:
$1,599 $1,699

Shipping calculated at checkout

Description

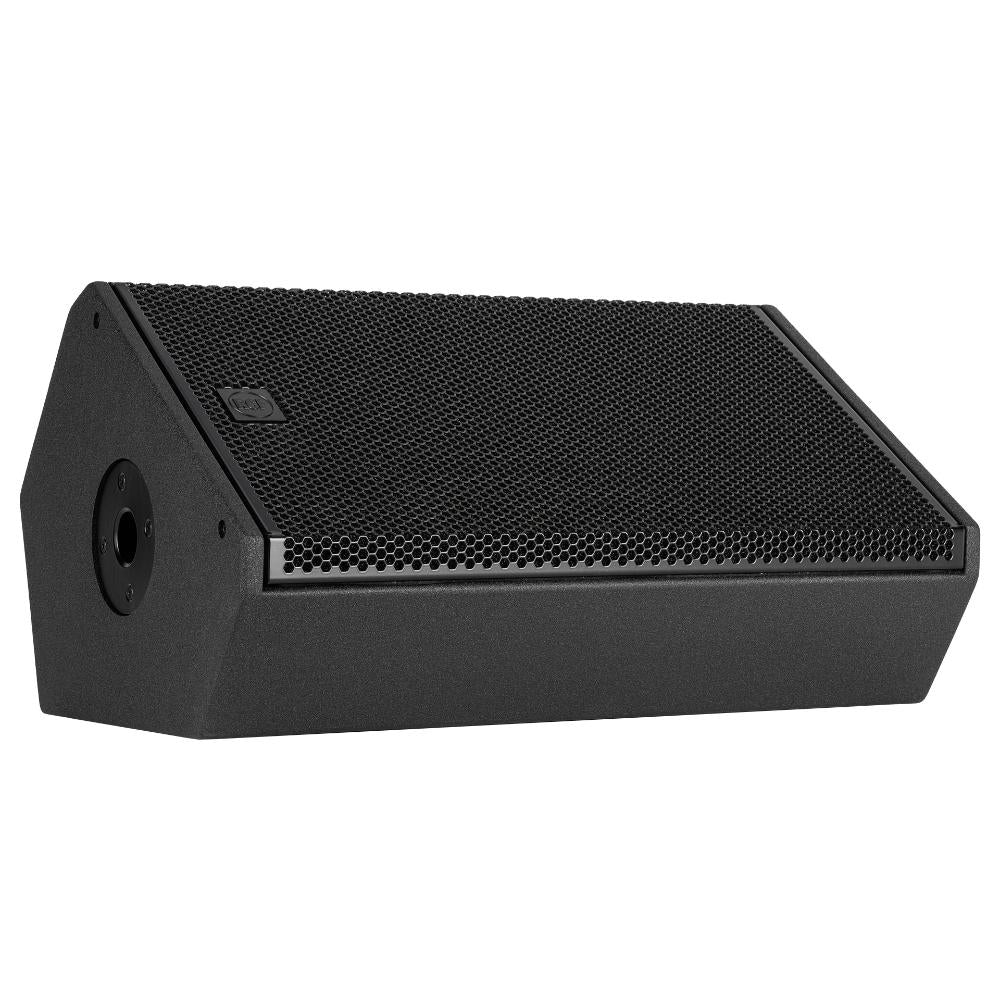

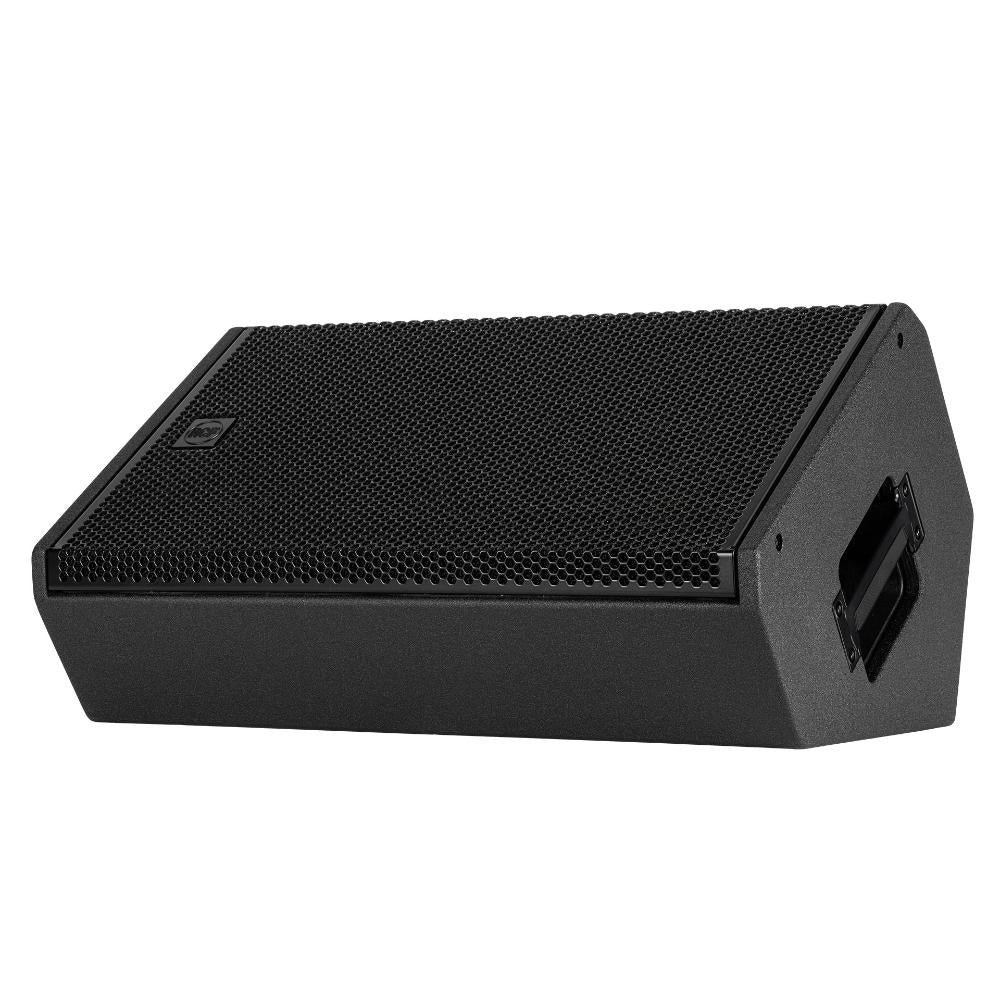

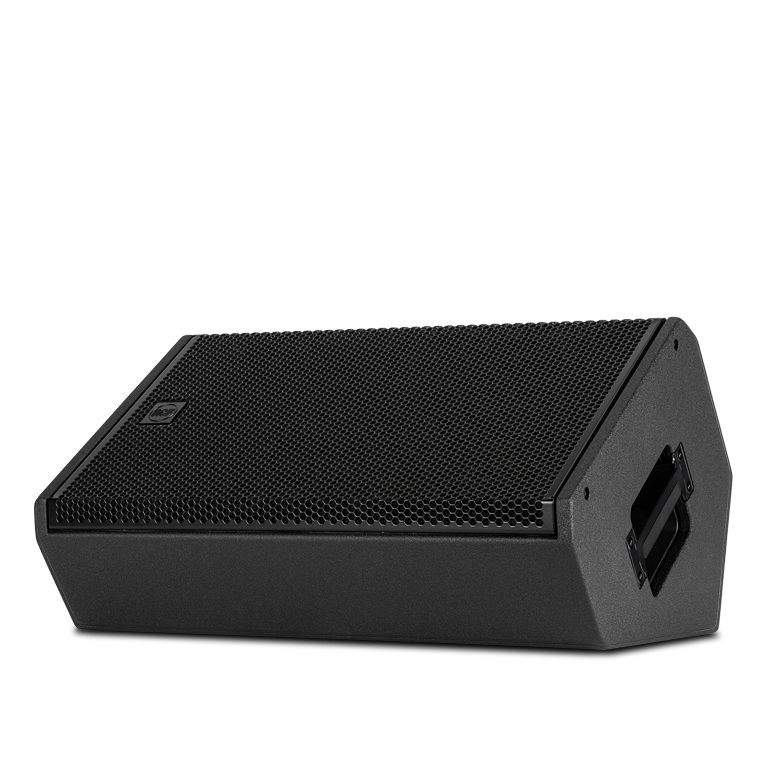

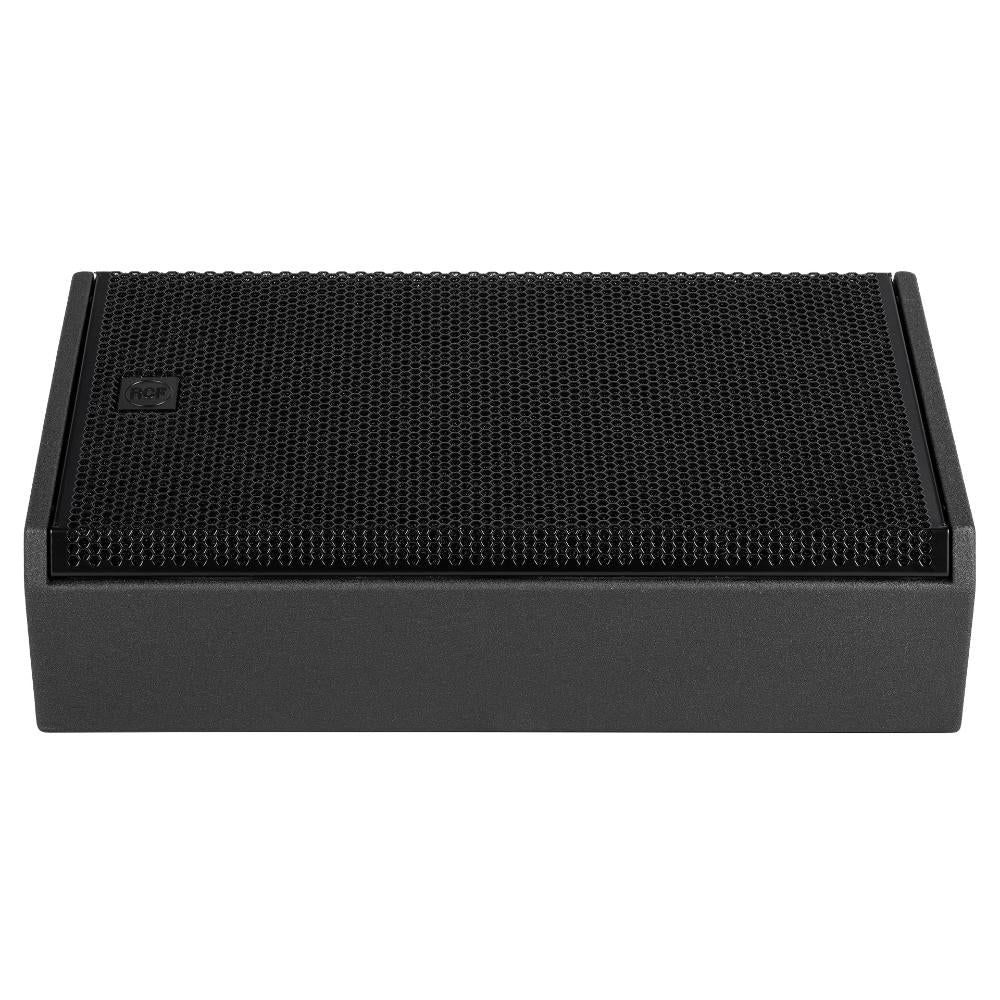

Active 12" 2-way High Output Stage Monitor

NX 912-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 12” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 130dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 912-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 912-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Features:

  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D bi-amplification
  • 50-20000 Hz linear frequency response
  • 1.75" Compression Driver
  • 12" Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
  • 70°x100° Constant Directivity Coverage Angle
  • Perfectly tailored for horizontal or vertical deployment


Specifications:
ACOUSTICAL SPECIFICATIONS

  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 70°

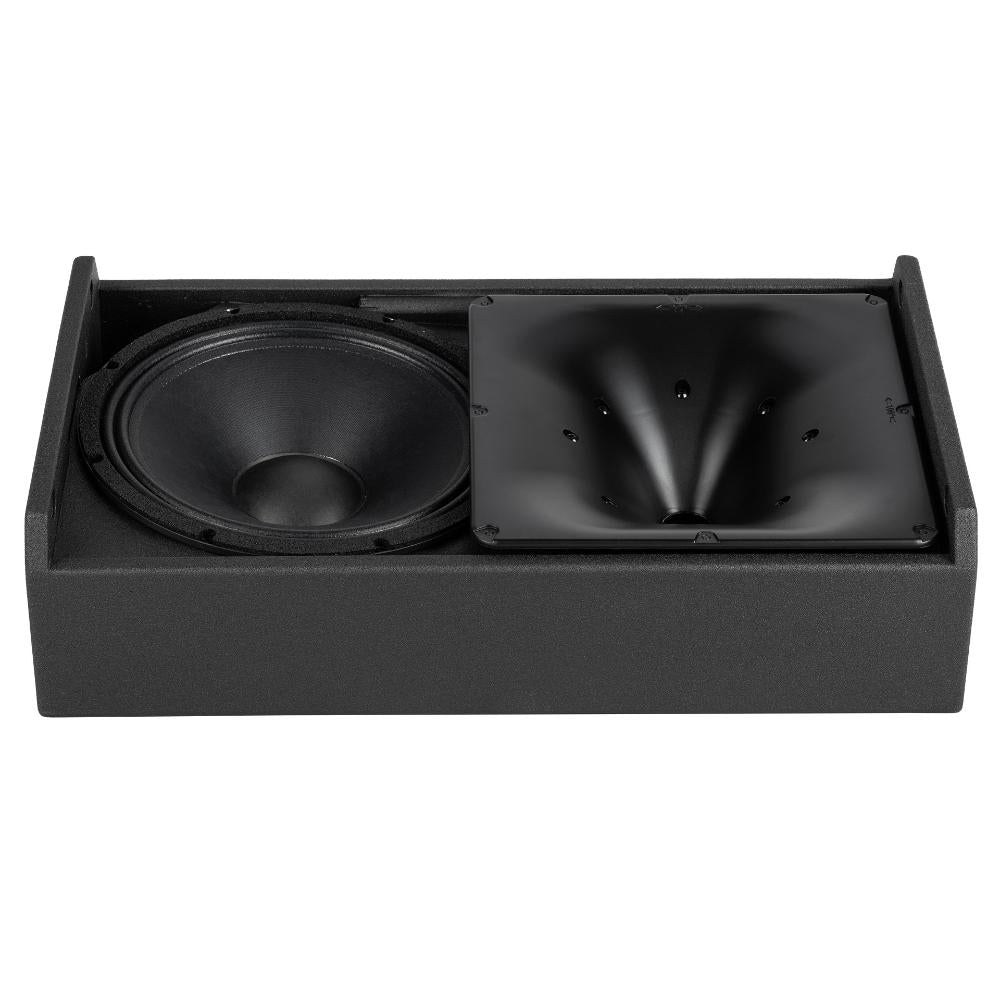

TRANSDUCERS

  • Compression Driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 12'', 2.5'' v.c

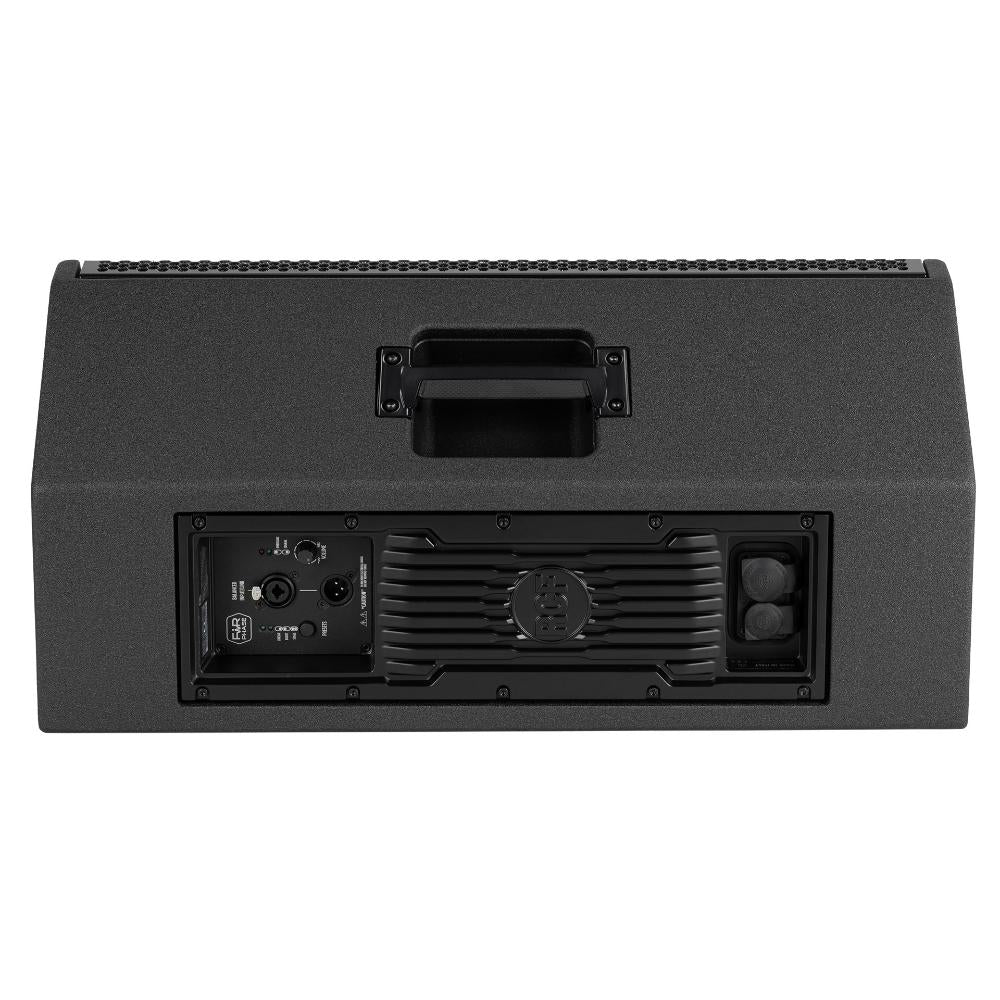

INPUT/OUTPUT SECTION

  • Input signal: bal/unbal
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

  • Crossover Frequencies: 1600 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter

POWER SECTION

  • Total Power: 2100 W Peak
  • High frequencies: 700 W Peak
  • Low frequencies: 1400 W Peak
  • Cooling: Convection
  • Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

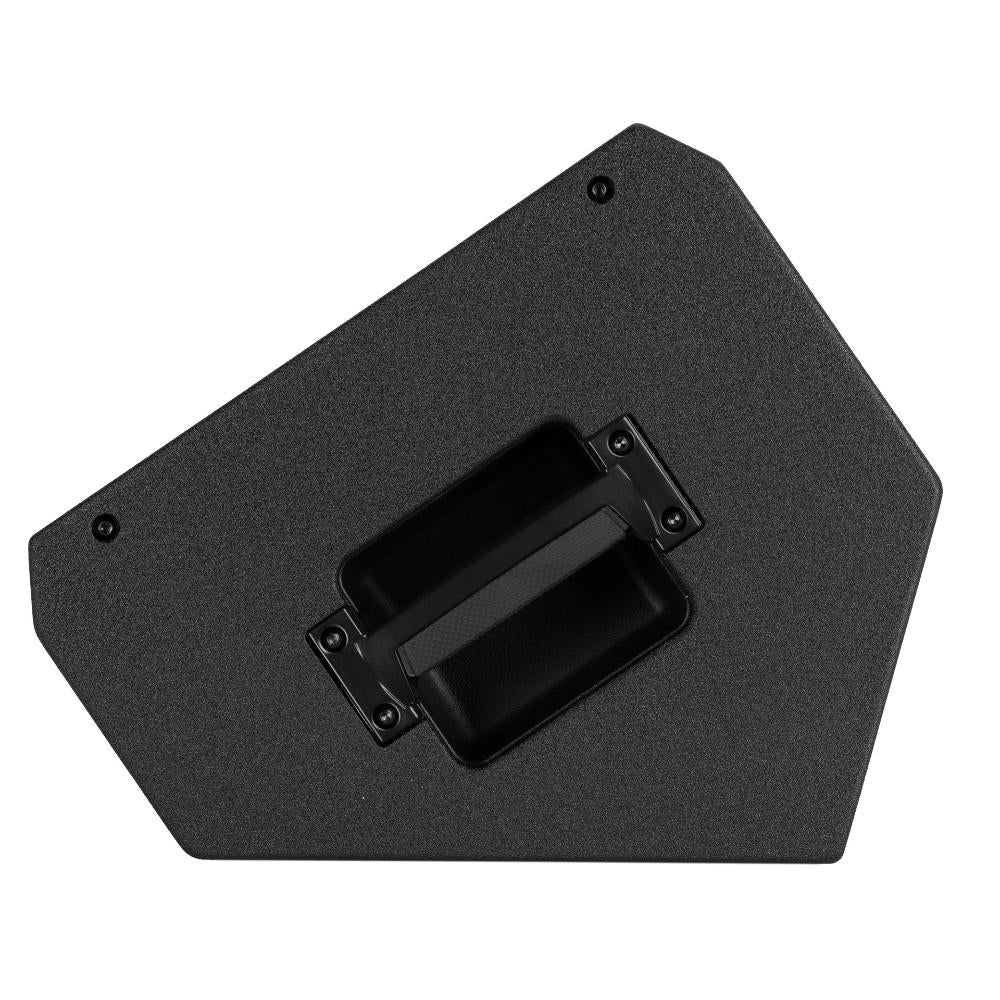

  • Handles: 1 on side and 1 on top

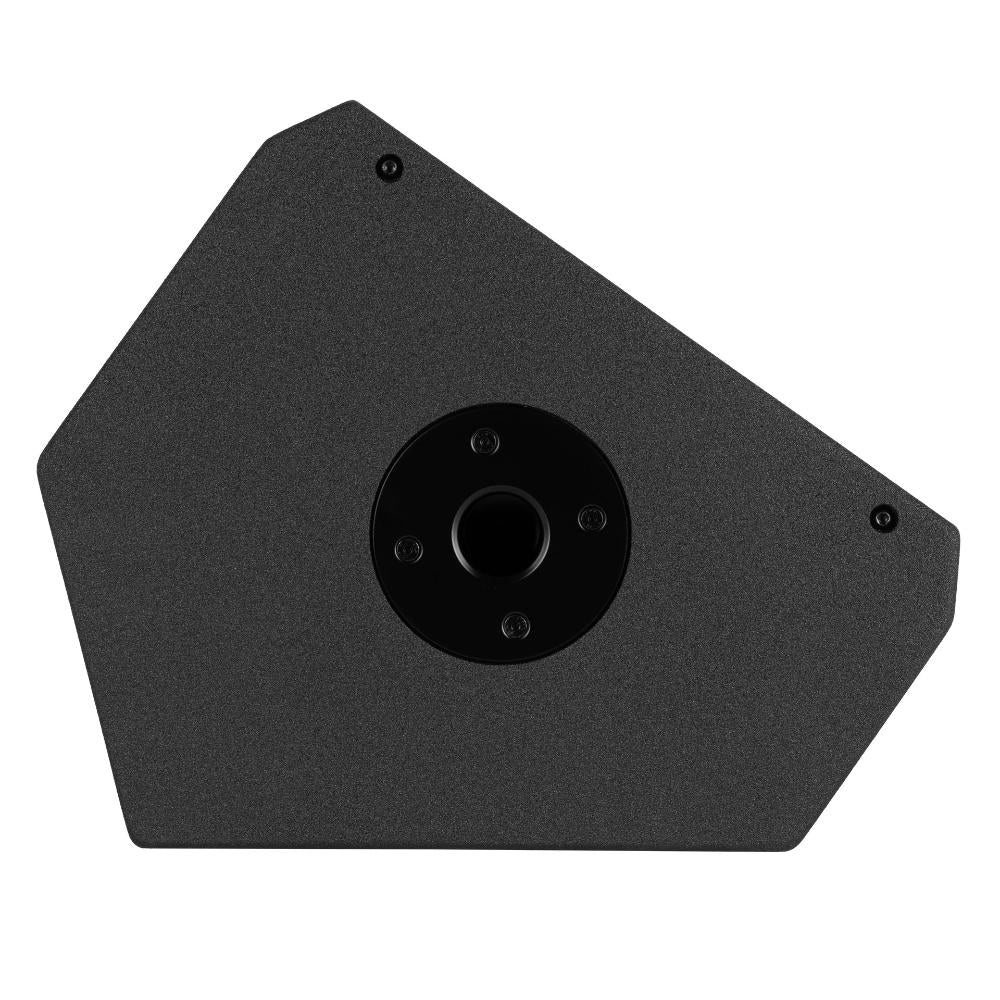

  • Pole mount/Cap: Yes
  • Color: Black

SIZE

  • Height: 320 mm / 12.6 inches
  • Width: 620 mm / 24.41 inches
  • Depth: 394 mm / 15.51 inches
  • Weight: 20 kg / 44.09 lbs
