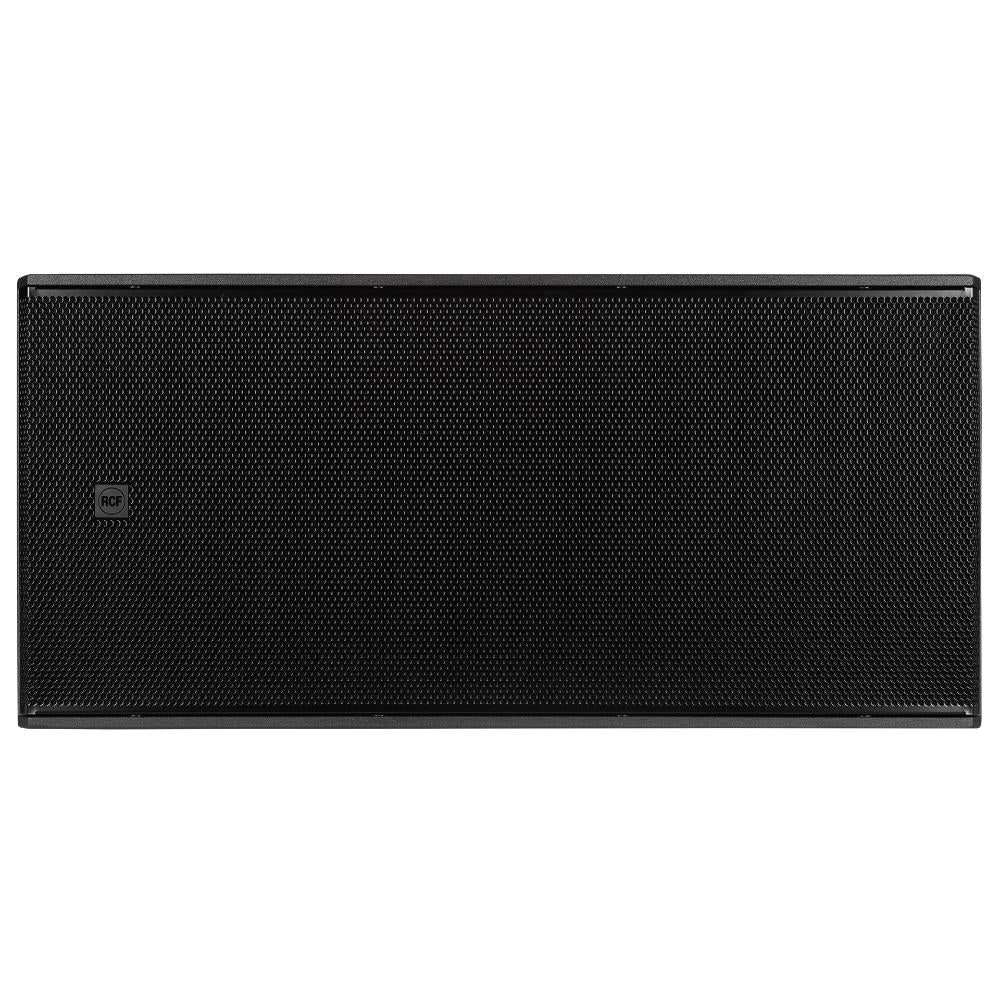

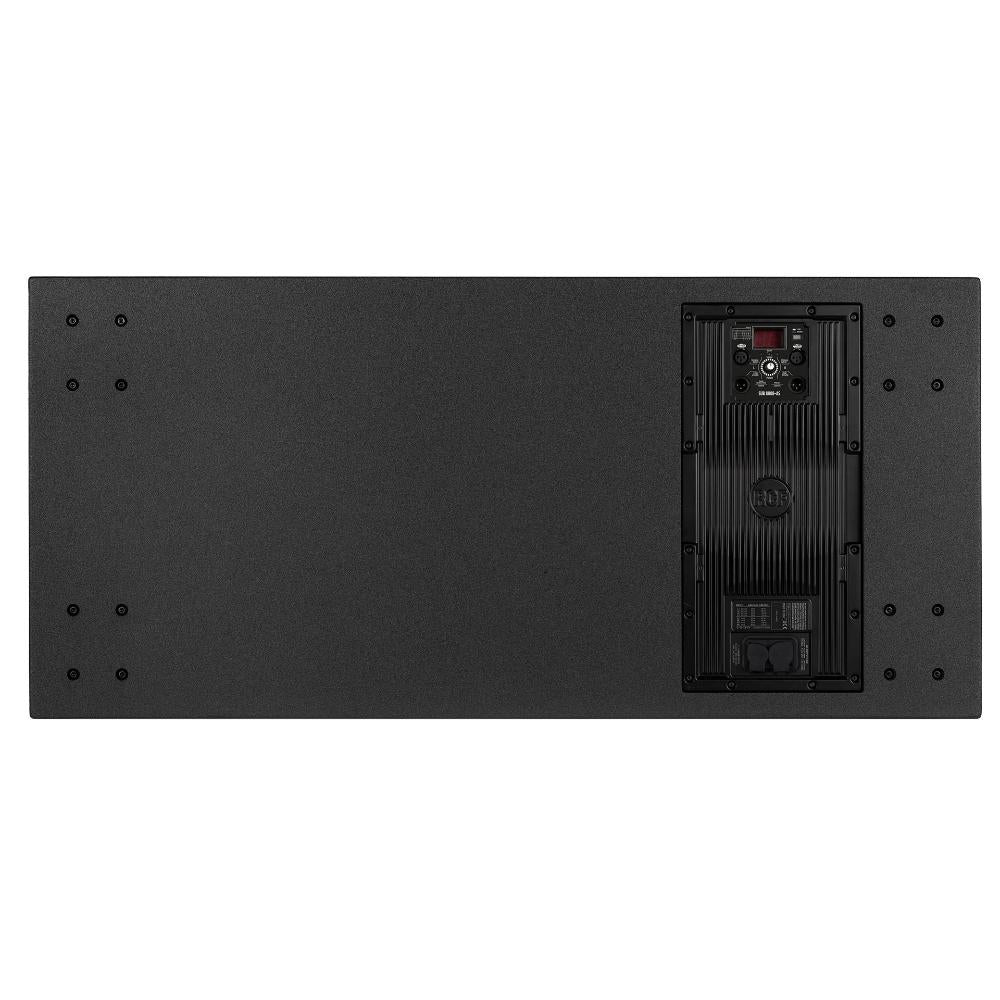

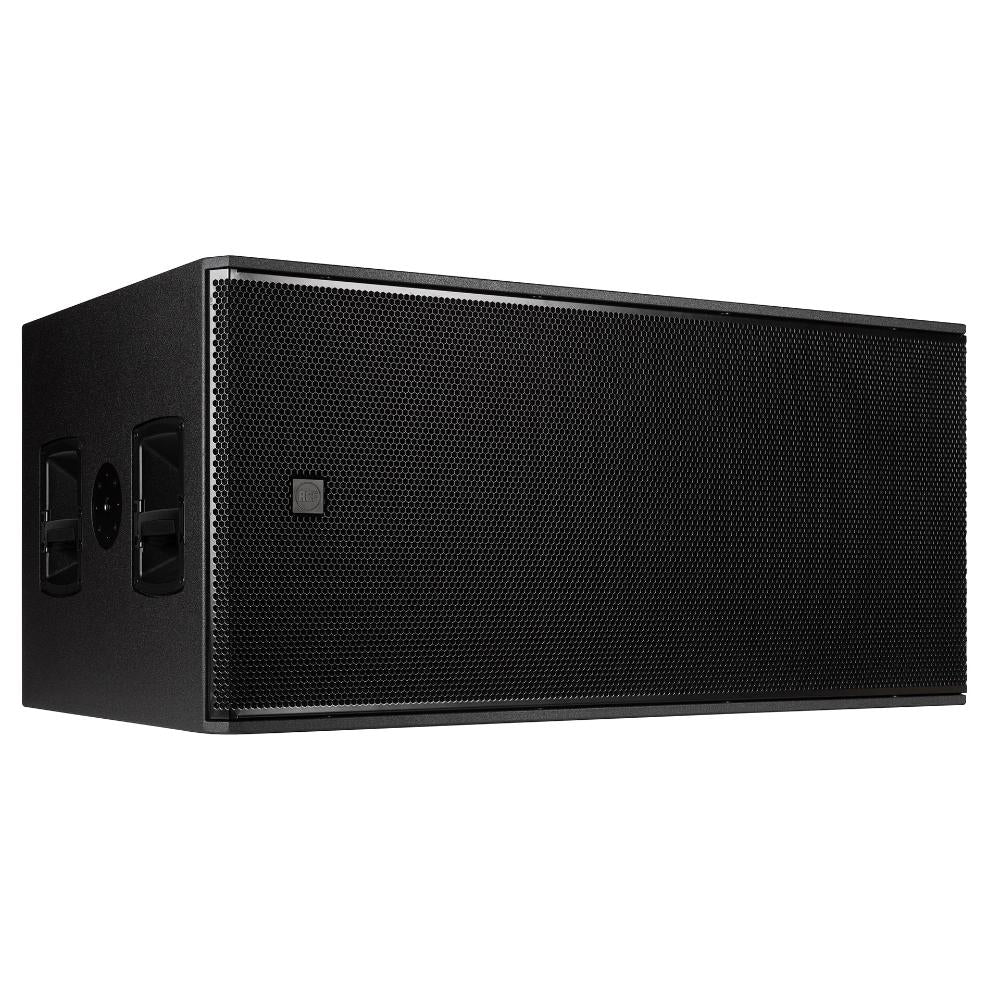

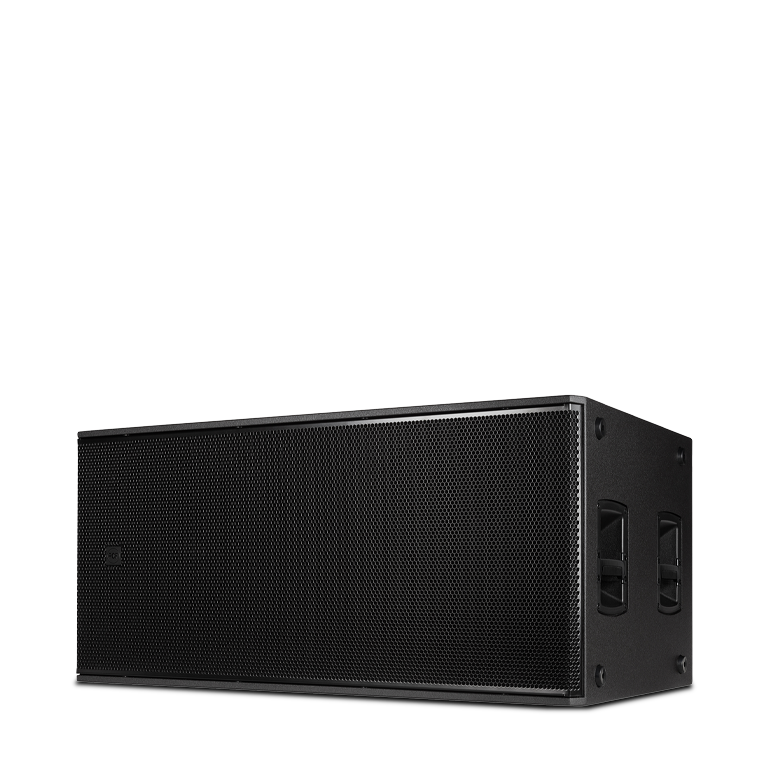

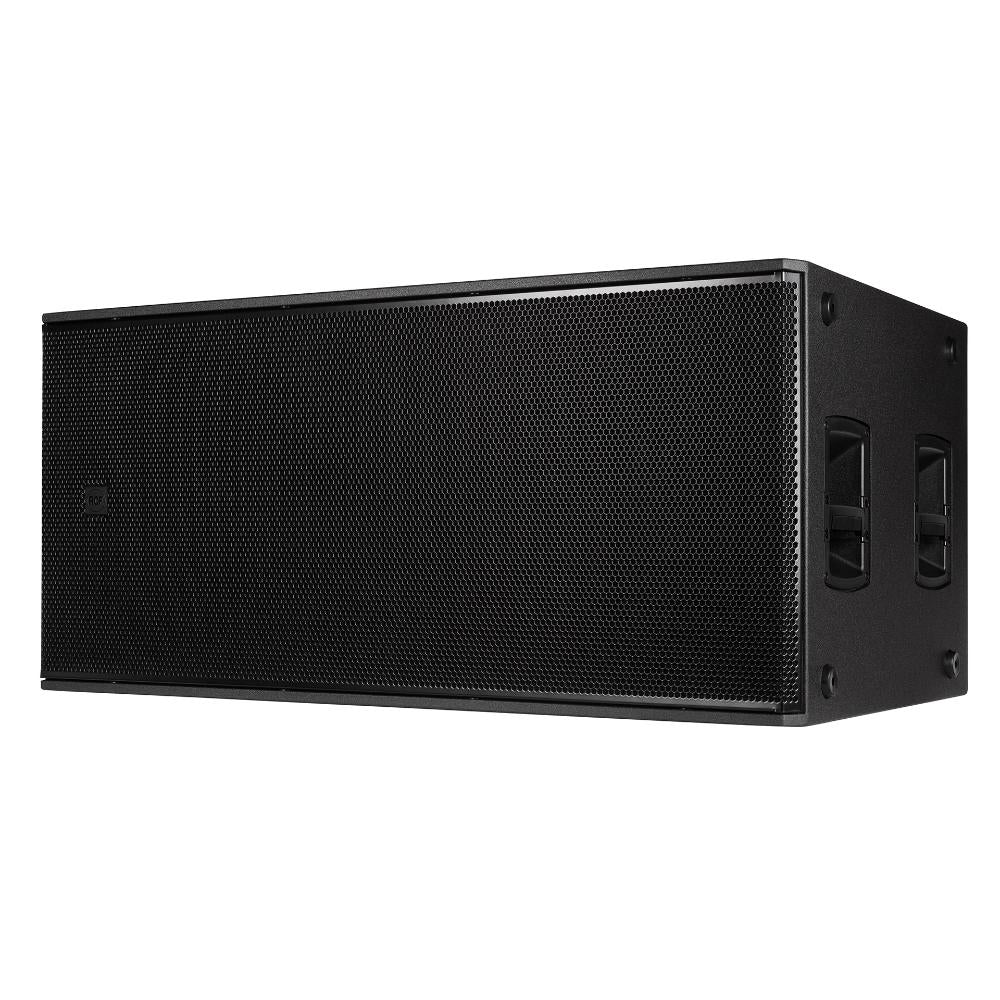

ARCHIVED | TOURING | SUB 9007-AS | ACTIVE HIGH POWER SUBWOOFER | Technical Specifications | 141 dB max SPL
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 20 Hz - 400 Hz |
| Max SPL @ 1m | 141 dB |
| Transducers | |
| Woofer | 2 x 21'' neo, 4.0'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | Input sensitivity |
| +4 dBu | |
| Processor section | |
| Hi-Pass Frequencies | 25Hz, 35Hz |
| Low-Pass Frequencies | Variable from 50Hz to 400Hz |
| Protections | Thermal, RMS |
| Limiter | Fast Limiter |
| Controls | |
| Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardiloid | Onboard |
| Power section | |
| Total Power | 7200 W Peak, 3600 W RMS |
| Low frequencies | Cooling |
| Convection | |
| Connections | |
| Powercon IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Hardware | Mounting points, 2 x M20 |
| Handles | 8 side |
| Pole mount/Cap | M20 thread |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 708 mm / 27.87 inches |
| Width | 1188 mm / 46.77 inches |
| Depth | 785 mm / 30.91 inches |
| Weight | 96 kg / 211.64 lbs |
| Shipping information | |
| Package Height | 760 mm / 29.92 inches |
| Package Width | 825 mm / 32.48 inches |
| Package Depth | 1135 mm / 44.69 inches |
| Package Weight | 110 kg / 242.51 lbs |
